| Model | SH-XQ2000 | SH-XQ3000 | SH-XQ5000 | SH-XQ10K |
| Rated power | 2kW | 3kW | 5kW | 10kW |
| Nominal voltage | 48V96v/120vac customized |
120v/220v/380vac customized |
220v/380vac customized |
220v/380vac customized |
| blade quantity | 3 piece | 3 piece | 3 piece | 3 piece |
| Diameter of wind wheel | 1.8m | 2m | 2.4m | 3m |
| Impeller height | 2.8 m | 3m | 3.6m | 4m |
| Electronic unloading | 5kW Brake resistance box |
5kW Brake resistance box |
10kW Brake resistance box |
15kW Brake resistance box |
| Rated speed | 220 RPM | 220 RPM | 200RPM | 150RPM |
| （mm)/Package size (mm) | 500*465*435mm,95 kg 3220*530*410mm,130kg |
550*480*450mm,130kg 3520*530*410mm,150kg |
4150*740*540 300KG 1030*1030*425 80kg |
4550*740*540mm 350KG 1030*1030*425mm 85KG |
| start-up wind speed | 2.3m/s | |||
| rated wind speed | 10m/s | |||
| Extreme wind | 45m/s | |||

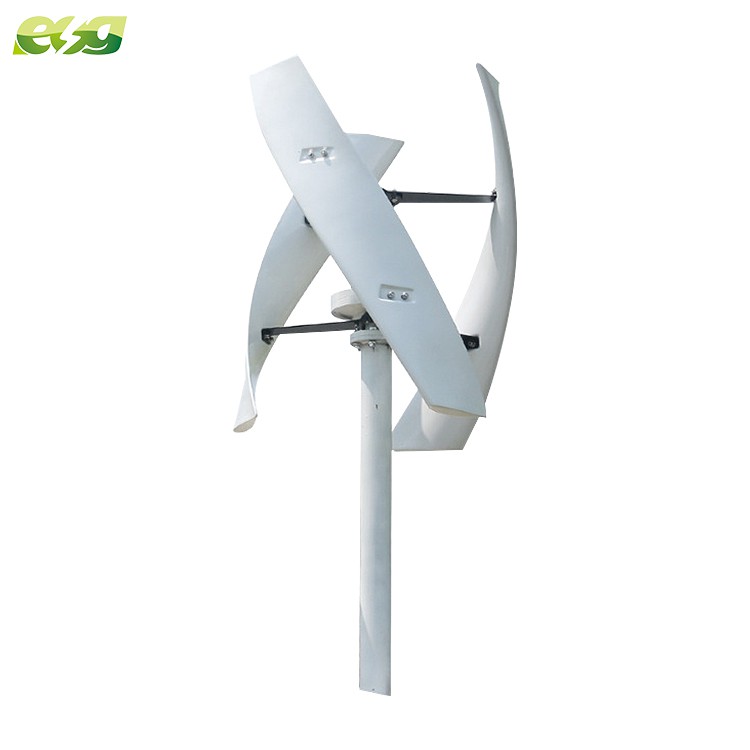

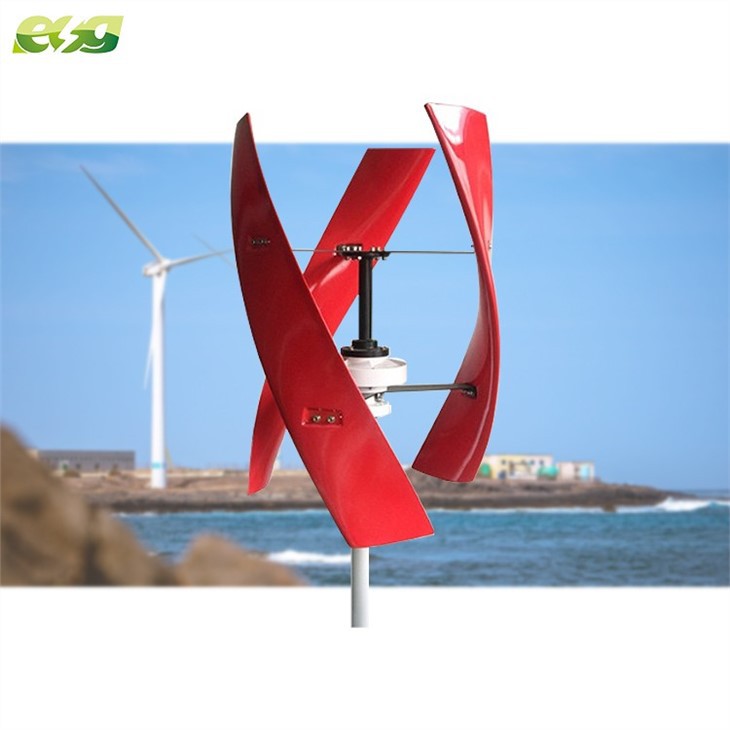

| Wind turbine type | Vertical axis wind turbine | |||
| braking system | Electromagnetic brake / mechanical brake (customized) | |||
| Hydraulic brake | Active brake, electric brake | |||
| Controller unit | PLC | |||
| Interface | HMI | |||
| Generator type | Three phase Coreless Permanent Magnet Synchronous Generator | |||
| Insulation class | H | |||
| Blade material | glass fiber reinforced plastics | |||
| Design level | IEC Class Ⅲ | |||
| Tower type | Independent pole | |||
| Authentication | CE；IOS | |||
| Noise | 35FB | |||
| Noise level | <35dBA | |||
| Temperature | ‐20°C~50°C | |||
| Altitude | ≤2000m | |||
| Degree of protection | IP54 | |||
| Design life | 20 /year | |||
Product Features
1. A magnet generator High efficiency horizontal rotation generator without a core.
2.3 blades with a curved shape optimally exploit wind resources and generate more power.
3. You are invited to represent us and benefit from a 20-year usage life and a 1-year warranty.
4. The device is small, light, stable, and safe. A unique control concept increases wind speed to 2.5 to 25 m/s, efficiently using the wind resource and generating more electricity.
5. CE certification.
6.High efficiency, maybe a hybrid system with LED street lights, a greenhouse, and solar panels for household usage...
Uses include illumination for opening plazas, marine, boats, streets, and homes.
Wind controller with MPPT boost (optional)
HYBRID MPPT BOOST CONTROLLER (optional)
HYBRID CONTROLLER FOR MPPT BOOST (optional)
Packing List:
1.3 pieces of blades, a set of generator, and a set of bolts and nuts.
2. a single primary shaft and arms
3. One piece MPPT controller.（optional）Four.
4. Inverter (optional)
