Products Description
|
Model Number |
FX-1000 |
|
Started wind speed (m/s) |
2 m/s |
|
Cut-in wind speed (m/s) |
3m/s |
|
Rated Wind speed (m/s) |
10 m/s |
|
Rated voltage(AC) |
24/48/96V |
|
Rated power(W) |
1000W |
|
Max power(W) |
1100W |
|
Rotor Diameter of Blades(m) |
1.1m |
|
Product assembly weight (Kg) |
<70Kg |
|
Blades colors |
White/Green/Red/Multi |
|
Blades height(m) |
1.64m |
|
Safe wind speed (m/s) |
≤40m/s, |
|
Blades quantity |
3 |
|
Blade material |
Fiber glass |
|
Generator |
Three phase permanent magnet suspension motor |
|
Control System |
Electromagnet |
|
Mount Height(m) |
2~12m |
|
Generator protection grade |
IP54 |
|
Work environment temperature |
-25~+45ºC, |
|
Work environment humidity |
≤90%, |
|
Altitude: |
≤4500m |
|
Overspeed protection |
Electromagnetic brake |
|
Overload protection |
Electromagnetic brake and the unloading unit |

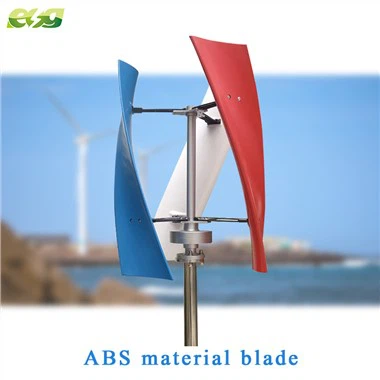

1, Curved blade design,utilizes wind resource effectively and obtains a higher power generation.
2, Coreless generator, Horizontal rotation and aircraft wing design reduce the noise to an unperceivable level in natural environment.
3, Wind resistance. Horizontal rotation and triangular double fulcrum design make it only bear a small wind pressure even in strong wind.
4, Rotation radius. smaller rotation radius than other types of wind turbines, space is saved while efficiency improved.
5, Effective wind speed range. special control principle expended the wind speed to 2.5 ~ 25m/s, utilizes wind resource effectively and obtains a higher power generation
Specification
|
Vertical Axis Wind Turbine Technical Parameters |
||||
|
Item |
10w |
20w |
30w |
50w |
|
Blade Length(mm) |
300 |
350 |
520 |
745 |
|
Blades rotor diameter(mm) |
328 |
560 |
560 |
560 |
|
Blade Material |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
Aluminum alloy |
|
Blade Quantity |
5 |
5 |
5 |
5 |
|
Rated wind speed(m/s) |
10 |
10 |
10 |
10 |
|
Start-up wind speed(m/s) |
2 |
2 |
2 |
2 |
|
Working wind speed (m/s) |
3.0-20 |
3.0-20 |
3.0-20 |
3.0-20 |
|
Security wind speed (m/s) |
35 |
35 |
40 |
40 |
|
Starting torque(n/m) |
0.05 |
0.07 |
0.1 |
0.13 |
|
Generator type |
Three phase pma |
Three phase pma |
Three phase pma |
Three phase pma |
|
Rated Power |
10W |
20W |
30W |
50W |
|
Max. Power |
15W |
30W |
45W |
60W |
|
Rated RPM(r/min.) |
500 |
400 |
400 |
400 |
|
Working voltage |
DC12V |
DC12V-24V |
DC12-24V |
DC12-24V |
|
Weight |
2.3kgs |
6kgs |
7.5kgs |
10.5kgs |
• Household, Garden, farm
• Telecom sites.Rural electrification programs. Island , sentry, island, sight lighting .
The off grid 300W 500w 1kw vertical axis wind turbine is often used in conjunction with solar panels to provide more reliable year-round energy supply.
