Wall Mount Lithium Iron Phosphate Battery 48v 200ah 6000 Cycle 51.2v 10kwh Battery Lifepo4 Power Wall For Home Solar Energy
| Inverter integrated energy storage battery series-ES51.2V100AH | |
| Basic parameters | |
| Batteries materials | Lithium iron phosphate |
| Series parallel mode (S series, P parallel) | 16S1P |
| Nominal voltage | 51.2V |
| Nominal capacity | 100Ah |
| Size（mm） | 793.8*562*138 |
| Weight | 65kg |
| Color | Optional |
| Output port mode | AC220V Socket |
| Charging way | Mains/PV |
| Charging current | 0.2C(standard） |
| Maximum charging current | Max0.5C @25℃ |
| Charge cut-off voltage | 58.4V |
| Discharge way | CP/VP |
| Discharge current | 0.5C |
| Maximum discharge current | Max1C @25℃ |
| Discharge cut-off voltage | 44.8V |
| According to | LCD |
| Communication interface | RS485/RS232/CAN |
| Charging operating temperature | charging:0~+50℃ |
| Discharge operating temperature：discharge | ‘-20~+55℃ |
| Built-in inverter parameters | 5KW |
| The quality assurance period | 36 months |
| Applicable scope | hospital, bank data center, base frame type home, enterprise energy storagebackup power supply, wind complementary system, office, military, base station and other uninterrupted energy storage power supply |
Product Introduction:

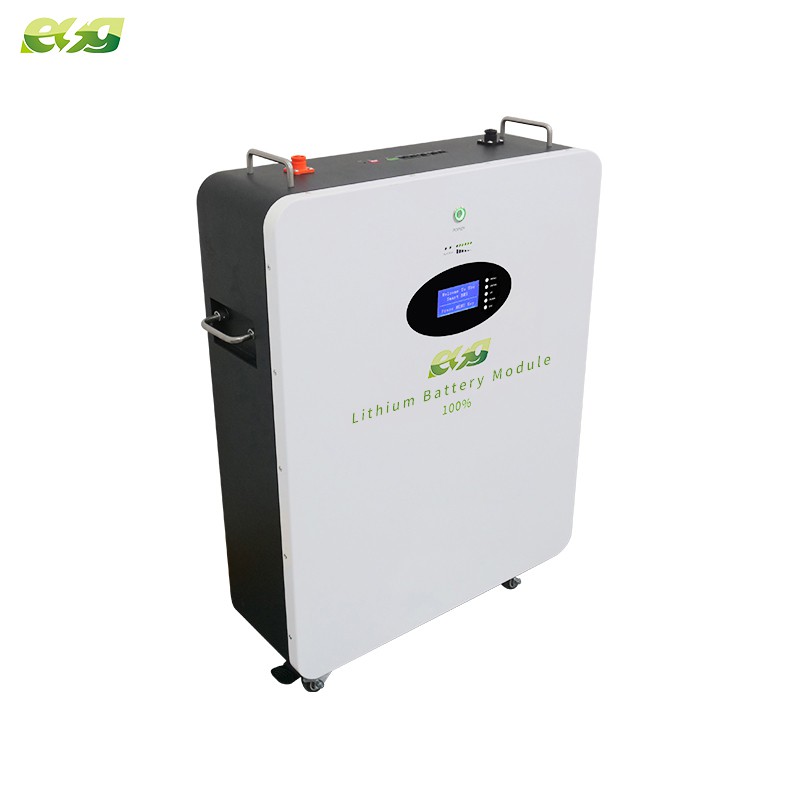

The wall-mounted lithium energy storage battery use long working life LiFePO4 battery, wall mounted installation is more convenient and beautiful, high performance BMSto protect and manage the battery system, it has wider usage and longer life than traditional battery.
Product Feature:
-High power, friendly interface, free combination
-High quality battery cell, precise combination
-CAN/RS485/WIFI/4G/Blue tooth communicaion
-BMS customization supported
-Thick shell, well protection for inside cells
1.Carefully designed handles for easier installation
2.Liquid crystal LCD display, monitor battery status at any time
MeritSun Wall Mounted Lithium battery has LCD screen, convenient setting buttons,
APP Monitor on your smartphones, and cables&accessories ready for installation.
To welcome the world cooperation we accept OEM with your logo design
