Features：
Wind resistance that is strong and low operating vibration
Low wind speed during start-up, high wind energy efficiency
Effective tracking with a low failure rate
Generator for rare earth permanent magnets or a generator for rare earth permanent magnet suspension
brakes using magnetism
Automatic windward adjustment, 40 to 80 °C
| Model | SH-XQ2000 | SH-XQ3000 | SH-XQ5000 | SH-XQ10K |
| Rated power | 2kW | 3kW | 5kW | 10kW |
| Nominal voltage | 48V96v/120vac customized |
120v/220v/380vac customized |
220v/380vac customized |
220v/380vac customized |
| blade quantity | 3 piece | 3 piece | 3 piece | 3 piece |
| Diameter of wind wheel | 1.8m | 2m | 2.4m | 3m |
| Impeller height | 2.8 m | 3m | 3.6m | 4m |
| Electronic unloading | 5kW Brake resistance box |
5kW Brake resistance box |
10kW Brake resistance box |
15kW Brake resistance box |
| Rated speed | 220 RPM | 220 RPM | 200RPM | 150RPM |
| （mm)/Package size (mm) | 500*465*435mm,95 kg 3220*530*410mm,130kg |
550*480*450mm,130kg 3520*530*410mm,150kg |
4150*740*540 300KG 1030*1030*425 80kg |
4550*740*540mm 350KG 1030*1030*425mm 85KG |
| start-up wind speed | 2.3m/s | |||
| rated wind speed | 10m/s | |||
| Extreme wind | 45m/s | |||

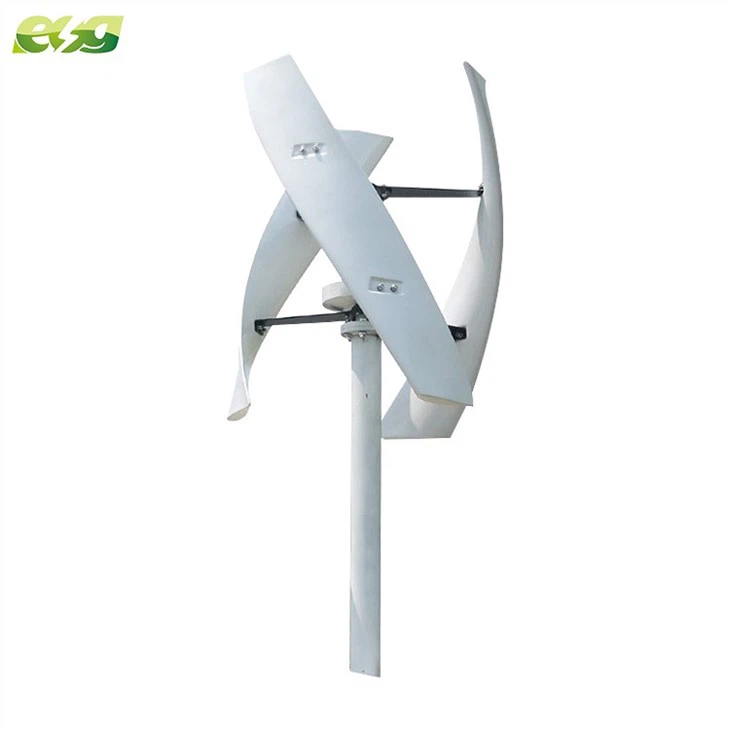

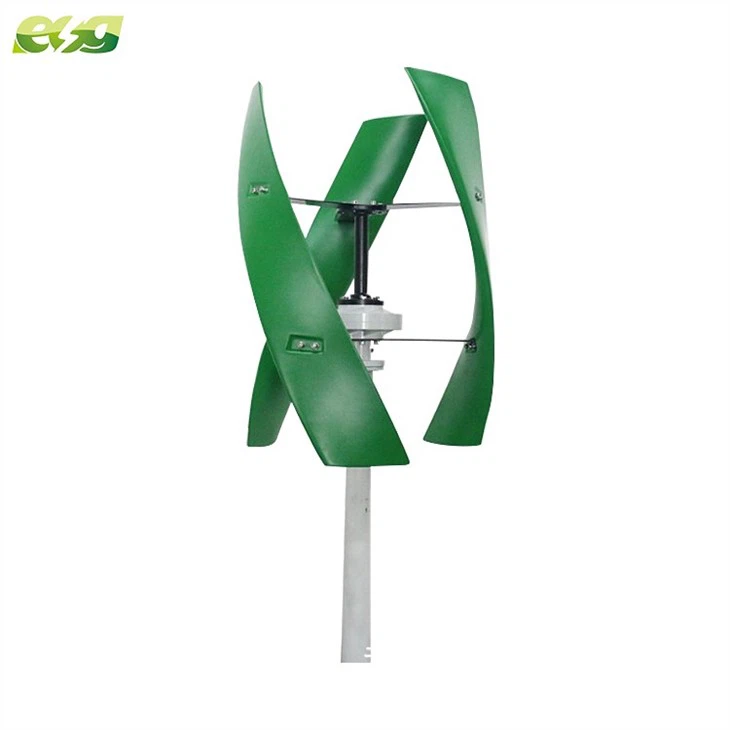

| Wind turbine type | Vertical axis wind turbine | |||
| braking system | Electromagnetic brake / mechanical brake (customized) | |||
| Hydraulic brake | Active brake, electric brake | |||
| Controller unit | PLC | |||
| Interface | HMI | |||
| Generator type | Three phase Coreless Permanent Magnet Synchronous Generator | |||
| Insulation class | H | |||
| Blade material | glass fiber reinforced plastics | |||
| Design level | IEC Class Ⅲ | |||
| Tower type | Independent pole | |||
| Authentication | CE；IOS | |||
| Noise | 35FB | |||
| Noise level | <35dBA | |||
| Temperature | ‐20°C~50°C | |||
| Altitude | ≤2000m | |||
| Degree of protection | IP54 | |||
| Design life | 20 /year | |||
|
Model |
ES-1000X |
ES-2000X |
ES-3000X |
ES-5000X |
ES-10000X |
|
Rated power |
1000W |
2000W |
3000W |
5000W |
10000W |
|
Rated voltage |
24/48V |
24/48V |
24/48V |
24/48V |
120v/240v |
|
Start-up wind turbine |
2.0m/s |
2.5m/s |
2.5m/s |
2.5m/s |
3m/s |
|
Rated wind speed |
12m/s |
12m/s |
13m/s |
13m/s |
13m/s |
|
Survival wind turbine |
50m/s |
50m/s |
50m/s |
50m/s |
50m/s |
|
Top net weight |
125kg |
201kg |
310kg |
580kg |
900kg |
|
Blade height |
1.65m |
1.86m |
2m |
2.3m |
3.65m |
|
Number of blades |
3 |
||||
|
Blades material |
Nylon fiber |
||||
|
generator |
Three phase permanent magnet ac synchronous generator |
||||
|
magnet |
NdFeB |
||||
|
Generator case |
Casting aluminum alloy |
||||
|
Control system |
Electromagnet/wind wheel yaw |
||||
|
Speed regulation |
Automatically adjust windward direction |
||||
|
Working temperature |
-40°C - 80°C |
||||
|
Design life |
20 y |
||||
Transportation and Packing
1) Pallet, inner box, carton, and load on container
2) Customers' specifications can also be used to create packaging.2022 New Faory Sale Home Efficiency Generator turbines wind 12v 24v 5kw 10kw 500w to 5kW vertical Wind Turbines
Company Information
New Factory Sale Home Efficiency Generator turbines wind 12v 24v 5kw 10kw 500w to 5kW vertical Wind Turbines
1. 34 years of brand experience at ESG
2. Batteries specialist. Battery detector patent obtained by factory. It can assess and fix damaged batteries,
3. Quick delivery: 12V7AH can produce 50,000 units every day. Popular variants 100AH and 200AH are kept in stock. therefore, 48-hour delivery
4. Finish the certification. We uphold ISO, CE, CCC, ROHS, TUV, SGS, and IEC UN38 standards. three certificates
Are you a factory, first?
A1: We have a factory that produces electrical equipment and antennas.
May I obtain some samples, please?
How long will it take?
A2: Sample orders are available and will be freight collected for use in quality control and market research.
The typical turnaround time for sample production is 1-3 days.
What is your payment schedule?
A3: As the primary ways of payment, we typically take PAYPAL and T/T; however, alternative payment options may be discussed.
4. Quality issues?
A4: We may offer technical assistance or return service if there is a quality issue or inquiry.
How can I get in touch with us?
A5: Enter your enquiry information below and press "Send"! You may expect free samples and the very finest solutions.
Hot Tags: 3kw x type wind turbine, China 3kw x type wind turbine manufacturers, suppliers, 5KW X Type Wind Turbine, 10KW X Type Wind Turbine, X Type Wind Turbine, 2KW X Type Wind Turbine, 2 kw wind turbine, mppt wind turbine
