192v 100ah/200ah Deep Cycle Battery Off Grid Solar Storage System
video
192v 100ah/200ah Deep Cycle Battery Off Grid Solar Storage System

192v 100ah/200ah Deep Cycle Battery Off Grid Solar Storage System

High energy ratio, friendly interface, independent cooling, free combination
Class A+cell, precision assembly
CAN/RS485/WIFI/4G/Bluetooth communication
Product Features

※ High energy efficiency ratio, user-friendly interface, independent cooling system, and flexible combination options.

※ Class A+ cells and precision assembly for optimal performance.

※ Supports CAN/RS485/WIFI/4G/Bluetooth communication protocols.

※ Customizable BMS protection board available.

※ Precision iron shell design ensures the capacity and safety of the battery cells.

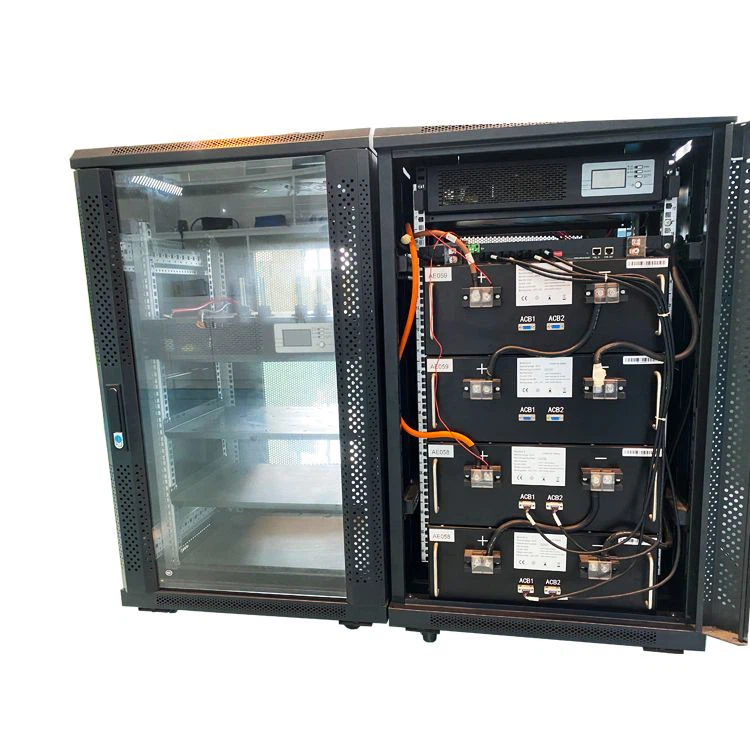

product-750-750

1.Battery Module Parameters
Item Parameters Remark
Nominal Capacity 200Ah 0.2C discharge;Cut-off voltage 37.5V
Energy 10240Wh
Nominal Voltage 51.2V
Factory Voltage 51.2-58.4V
Internal Resistance 50m After standard charge AC 1KHz test
Charge Voltage 58.4V±0.2V CC/CV
Standard Charge Current 0.2C
Max Charge Current 1C
Standard Discharge Current 20A
Max Discharge Current 150A
Discharge Cut-off Voltage 44.8V
Working Temperature 0~+45℃,Charge;-10~+70℃,Discharge
High Temperature Static 80℃ 48h
Storage Temperature 0℃~+45℃,
Weight 170kg
Finished Product Size 1050*600*600mm



2.Inverter Parameters
1 Inverter Rated Power 5KVA
2 Instantaneous power(20ms) 15kw
3 Output Waveform Pure Sine Wave
4 Output Voltage 220VAV(±10%)
5 Output Frequency 50Hz/60Hz(Auto detect)
6 Inverter Efficiency(Maximum) >95%(Rated load, when battery pack is full)
7 Conversion Time 10ms(UPS typical conversion time)20ms(Load conversion time)
8 Communication Interface With RS232 and USB data transmission interface
9 Screen Display Data LED Screen display data
10 Input Control Support 220V AC input and solar panel and bypass voltage charging input. Automatic switching



Application Scenario

※ Energy storage system, control system, alarm system, power system, and database integration.

※ Emergency lighting system, standby power supply, and UPS (Uninterruptible Power Supply) support.

※ Telecommunication equipment, communication equipment, fire protection system, security defense system, and power station applications.

product-750-750

Despite its relatively large volume and weight, we have reinforced its stability and durability by utilizing superior materials and sturdy screws. We've implemented multi-directional reinforcement to ensure safety and firmness, preventing excessive internal temperatures during usage. Additionally, multiple exhaust ports have been integrated into the design for enhanced safety and reliability.



product-425-264

product-639-637



The lithium battery pack features a compact design with an LCD screen and convenient setting buttons. It also includes Bluetooth monitoring capability on smartphones, along with cables and accessories ready for installation. This high-voltage series is widely utilized in solar systems for both residential and commercial use.



With a deep cycle capability of over 6000 times and up to 90% DOD (Depth of Discharge), coupled with phosphate battery cells, a single battery boasts 48V, 200Ah, and 10.24kWh. A complete cabinet comprises 5 batteries, totaling 51.2kWh. Without a master control, it supports a maximum of 5 parallels for a 51.2kWh battery system. With standard master controls, it can be paralleled and serialized with additional batteries. The built-in smart BMS (Battery Management System) protects against overcharge, over-discharge, over-current, and short circuit, with an excellent self-discharge rate. Moreover, the built-in high-temperature cutoff prevents charging over.



This series exclusively uses LiFePO4 battery cells, employing Grade A Cells for 6000 cycles with higher energy density, more stable performance, and greater power output.

product-900-692

  • With over 6000 deep cycles and up to 90% DOD, featuring lithium iron phosphate battery cells.
  • Boasts a compact and fashionable design suitable for home environments.
  • Offers up to 5KWh/10KWh with a single module.
  • Modular design provides customers with various capacity options.
  • Compatible with most popular hybrid inverters.
  • Simple buckle fixing minimizes installation time and cost.
  • Designed for over 15 years of service life, ensuring high reliability and long lifespan.
  • Environmentally friendly with green energy usage, free from harmful heavy metals that could harm the environment.
  • Features fast charging capability, with super-fast charging reaching 90% in just 1 hour.
  • Lightweight battery construction, significantly lighter than equivalent lead-acid batteries.
  • Requires zero maintenance, saving operational expenses for the user.
  • Easy implementation, eliminating the need for additional manpower during installation.
  • Offers expansion capability with configuration flexibility, supporting parallel connection expansion.
