BATTERY STRUCTURE & CHARACTERISTICS
* Longer Cycle Life:Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid
battery,helping to minimize replacement cost and reduce total cost of ownership.
* Light Weight:About 40% of the weight of a comparable lead-acid battery. A drop in replacement for lead acid batteries.
* Higher Power: Delivers twice power of lead acid battery,evern high discharge rate, while maintaining high energy capacity.
* Wider Temperature Range:-20℃-60℃
* Superior Safety:Lithium Iron Phosphate chemistry eliminates the risk of explosion or combustion due to high impact,
overcharging or short circuit situation.
* Increased Flexibility:Modular design enables deployment of up to four batteries in series and up to four batteries in parallel.
Product Description
. Long service life: product cycle times: 100% DOD6000 times
. The product has high safety, built-in temperature probe, safety alarm extinguisher, double protection function,
. BMS has the function of active equalization.
.It is intelligent and can detect voltage and electric quantity to avoid overcharge and overdischarge.
. All brands of inverter communication can be connected

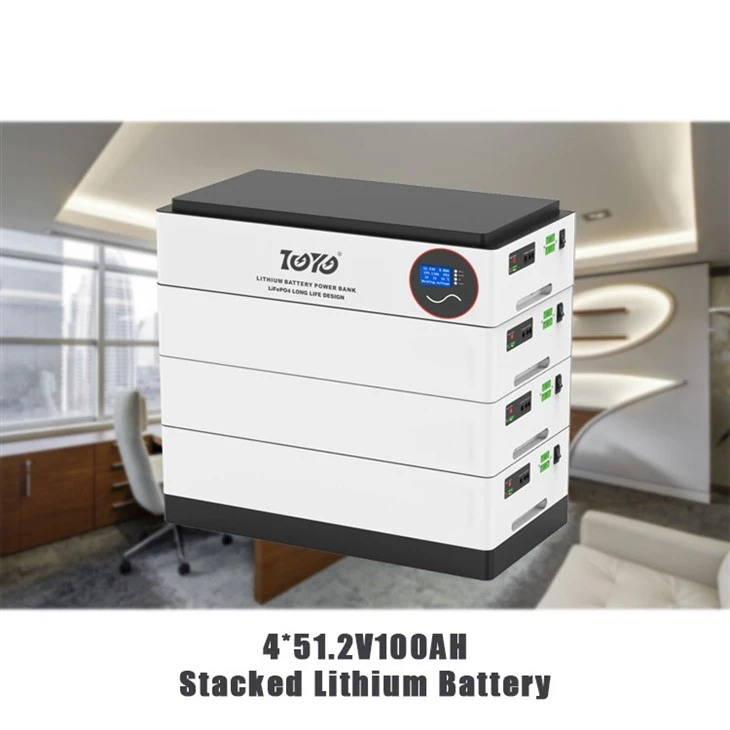

| MODEL | TOYO-51.2V100AH | TOYO-51.2V200AH | TOYO-51.2V300AH | TOYO-51.2V400AH |
| SPECIFICATION | ||||
| Battery Module | TOYO-51.2V50AH | |||
| No. of Module | 1 | 2 | 3 | 4 |
| Normal Capacity(25℃,0.2C)(WH) | 5120Wh | 10.24KWh | 15.36KWh | 20.48KWh |
| Battery Type | LiFePO4 (BYD Cell) | LiFePO4 (BYD Cell) | LiFePO4 (BYD Cell) | LiFePO4 (BYD Cell) |
| Voltage window (Vdc) | 44.8～58.4V | 44.8～58.4V | 44.8～58.4V | 44.8～58.4V |
| Folat Charge Voltage(Vdc) | 56.0V | 56.0V | 56.0V | 56.0V |
| Max.continue discharge current(A) | 50 | 100 | 150 | 200 |
| Max.pulse discharge current(A) | 150A 1Sec. | 300A 1Sec. | 450A 1Sec. | 600A 1Sec. |
| Max.continue charge current(A) | 50 | 100 | 150 | 200 |
| Cycle life(+25℃ 0.2C 100%DOD) | ＞6000 Cycles | ＞6000 Cycles | ＞6000 Cycles | ＞6000 Cycles |
| Cell Equalizer Current(A) | 1~5A Max. | 1~5A Max. | 1~5A Max. | 1~5A Max. |
| Terminal | Double M8 | Double M8 | Double M8 | Double M8 |
| Storage temperature | 0℃～30℃ | |||
| Storage duration | 6 months at 25℃ | |||
| Safety standard | UN38.3,MSDS,CE | |||
| IP degree | IP20 | |||
| Communication function | RS485/CAN(Communication protocol supported inverter brand: Deye, Growatt, Voltroni, GOODWE, VICTRON, PYLONTEC, SMA, SOFAR) | |||
| PROTECTION | ||||
| Protection | Overcharge protection,Overdischarge protection,Overcurrent protection,Shortcircuit protection, Overtemperature protection | |||
| AMBIENT | ||||
| Noise(dB) | < 40dB (1 meter) | |||
| working Temperature | -10℃～+50℃ | |||
| Humidity | 0~95% ( no condensation) | |||
| Sea Level(m) | ≤1500 | |||
| DIMENSION | ||||
| L×W×H (products size) mm | L830*W422*H192mm | L830*W452*H428mm | L830*W422*H595mm | L830*W422*H761mm |
| Weight(NW Kg) | 65.0Kg | 118.0Kg | 175.0Kg | 228.0Kg |
