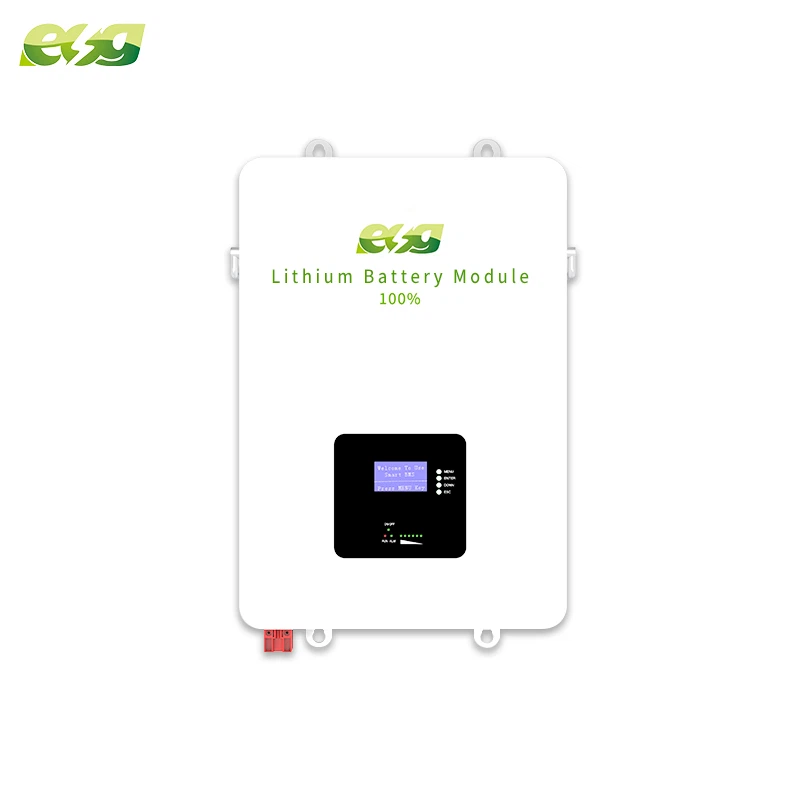

Lifepo4 battery solar power wall 10kw lithium ion battery energy storage solar battery 51.2v 100ah
| Inverter integrated energy storage battery series-51.2V100AH | |
| Basic parameters | |
| Batteries materials | Lithium iron phosphate |
| Series parallel mode (S series, P parallel) | 16S1P |
| Nominal voltage | 51.2V |
| Nominal capacity | 150Ah |

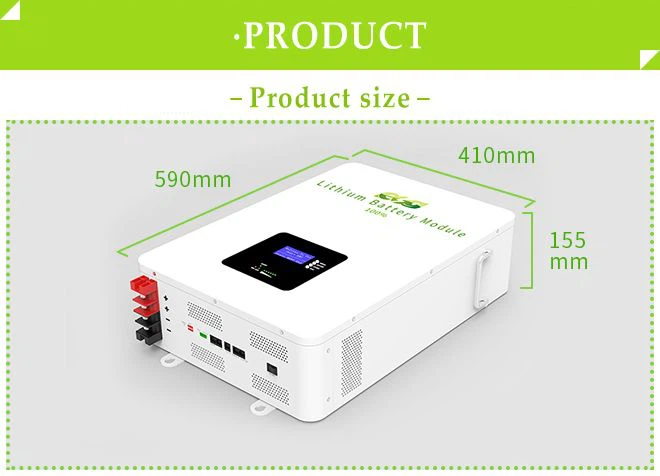

| Size（mm） | 670*440*155 |
| Weight | 55kg |
| Color | Optional |
| Output port mode | AC220V Socket |
| Charging way | Mains/PV |
| Charging current | 0.2C(standard） |
| Maximum charging current | Max0.5C @25℃ |
| Charge cut-off voltage | 58.4V |
| Discharge way | CP/VP |
| Discharge current | 0.5C |
| Maximum discharge current | Max1C @25℃ |
| Discharge cut-off voltage | 44.8V |
| According to | LCD |
| Communication interface | RS485/RS232/CAN |
| Charging operating temperature | charging:0~+50℃ |
| Discharge operating temperature：discharge | ‘-20~+55℃ |
| Built-in inverter parameters | 5KW |
| The quality assurance period | 36 months |
| Applicable scope | hospital, bank data center, base frame type home, enterprise energy storagebackup power supply, wind complementary system, office, military, base station and other uninterrupted energy storage power supply |
Product Description
● Long service life: product cycle times: 100% DOD6000 times
●The product has high safety, built-in temperature probe, safety alarm extinguisher, double protection function,
● BMS has the function of active equalization.
● It is intelligent and can detect voltage and electric quantity to avoid overcharge and overdischarge.
●All brands of inverter communication can be connected
BATTERY STRUCTURE CHARACTERISTICS
GRADE A QUALTY SOLUTIONS FOR GLOBAL NEW ENERGY APPLICATIONS
Overcharge protection function
Overdischarge protection function
Over current protection function
Short circuit protection function
Temperature protection function
Cell balance function
Communication function RS485, CANbus
Dual switch protection (On/Off switch, Master switch)
* Embedded BMS offers voltage, current, temperature protection and alarm functions. BMS can communnicate with other device by modbus protocol.
* Embedded BMS unit measures current, voltage, single cell surface temperature and the ambient temperature of the battery.
* Embedded BMS offers four remote functions which can communicate with far-end central control center by computer management.
* The combination of BMS and computer management technology can achieve real-time monitoring and control of various parameters and status.
* The power system has secondary cut-off protection and when the voltage is too low the system will cut off the support from the battery to protect the battery .
BMS and Communicating function
Lifepo4 battery solar power wall 10kw lithium ion battery energy storage solar battery 51.2v 100ah
Hospital, bank data center, base frame type home,enterprise energy storage backup power supply, wind complementary system, office, military, base station and other uninterrupted energy storage power supply.
Packaging method
